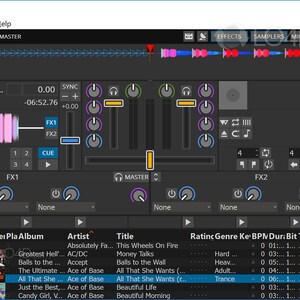

The paths where Mixxx stores its default skins and controller mappings are different on various operating systems. Next to dynamic scaling using (e,e) units the newer default skins are somewhat modular.ĭeparting from LateNight i simply deleted the style xml files for the buttons/sections I did not need, ending up with a minimal two deck view of waveforms, track name, bpm and using a leftover key on my controller to show and hide the fullscreen library! The skins provided by the later Mixxx distributions seemed rather indimidating at first but soon made me realized they are far more flexible than they look.
#MIXXX GUIDE INSTALL#
Nevertheless, you will need a skin that accommodates the data you are interested in, while being readable on a small screen.Īgain I started off with an existing skin, an older "minimal" skin found on in an old Mixxx install (< 2.0.0) only to find out there is no scaling, only absolute values for size and position as well a different naming convention for buttons, making it incompatible with newer skins and mappings ("library" verus "playlist" for example).
#MIXXX GUIDE PORTABLE#
To make the setup extra portable I dressed my Raspberry Pi in a 2.8" Touch Screen that is long out of production.īeing rather impractical, I would suggest getting a larger screen. Starting from an existing community contributed mapping script that did not intimidate me (Icon iDJ) and by launching Mixxx with the -controllerDebug argument I was able to at least get the jogwheels to be somewhat reactive. Most buttons are easily mapped using the GUI, but the jogwheels can be problematic.
Note, this is without any optimizations to the Raspbian OS (no realtime kernel, no JACK) so there is possibly room for improvement!Īs there was no mapping for the controller I set out to create my own. Putting one and two togetherīeing both a controller and audio interface, the Akiyama Pulsar reduced the overhead created by multiple USB devices (?) allowing the Raspberry Pi to run Mixxx smoothly with less than 20ms latency and no underruns.
#MIXXX GUIDE SOFTWARE#
This "Traktor ready" controller had been given to me over the previous owner's frustrations with the lack of mappings for any other software than Traktor. To no avail I tried various cheap USB cards and after many more low power warnings and high latencies, my eye fell on a white label brand controller (Akiyama Pulsar) with built-in soundcard. With new found hope of building a "laptop-less" portable DJ setup I connected my USB sound card and cheap controller only to find out the Raspberry Pi could not deliver enough current to the USB port of the controller - no surprise there.Įager to keep the setup simple and portable, I did not want to deal with external powered USB hubs. but wait, would it actually run? Gaining power
Out of curiosity, a quick search of the Rasbian software repository brought up a match for "Mixxx". Up until then I had only worked with the original Raspberry Pi and I was quite shocked at the greatly improved performance of the Pi model 3. In a move that later proved to be somewhat overkill, I grabbed a Raspberry Pi 3 that had been collecting dust and wrote some scripts to play random audio files.
This was until I was commissioned to make a random sound file player for an exhibition by De Player. This is a small story on how developments in both open source hard- and software as well as a well-equipped parts bin ends up in a somewhat specific but usable portable DJ setup using Mixxx and a Raspberry Pi. Since the advent of small, portable netbook computers and single board computers I have been trying to downsize my DJ setup.įrustrated by power issues, lack of performance and audio quality I resorted to a bulky but solid Thinkpad, a cheap controller and my software of choice: Mixxx. To protect your privacy, you need to accept YouTubes privacy statement and terms of use first by clicking the button below. Watching embedded videos will transfer data to YouTube.
